一、进口美标安全阀产品概述 品牌：美国威盾VTON 进口美标安全阀，American Standard safety valve，是指按照美标ANSI及API规范设计制造，压力为150LB,300LB,600LB,900LB,1500LB，用于管道，储罐，或者设备的超压保护装置的安全阀。 美国威盾VTON美标安全阀按API RP520设计，适用大部分常规介质的工矿条件，采用伞形反冲盘设计，能够有效地提高排放压力，阀瓣能在较小的超压下迅速达到全启的高度，从而达到额定排量；阀座和阀瓣的密封面堆焊硬质合金，再经精心研磨后保证安全阀的密封性和使用寿命。
二、进口美标安全阀产品特征 1、美标安全阀阀座与阀体为可分离式，维修方便、经济 2、美标安全阀伞形反冲盘和调节圈能够有效地提高升力，阀瓣在较小超压下就能够迅速全开启，排放介质，从而达到保护设备的目的 3、美标安全阀调节圈能够调整满意的启闭压差 4、美标安全阀对反冲盘和导套、阀杆和调整螺钉的材料进行合适的选择以及间隙的适当选取，保证阀瓣的运动灵活 5、美标安全阀密封面处堆焊硬质合金，表面精研后保证了安全阀的耐蚀性、高密封性和使用寿命长 6、美标安全阀弹簧和波纹管选材及加工工艺讲究，并进行严格的测试和检查
三、进口美标安全阀执行标准
设计规范：API RP 520 结构长度：API RP 520 法兰连接：ANSI B16.34
试验与检验：API 527
四、进口美标安全阀整定压力等级
公称压力（Lbs) | 进口温度（°C)/整定压力等级 | -29～38 | 38～232 | 232～427 | 150# | ≤1.96MPa | ≤1.27MPa | ≤0.55MPa | 300# | ≤5.10MPa | ≤4.24MPa | ≤2.82MPa | 600# | ≤10.20MPa | ≤8.51MPa | ≤5.68MPa | 900# | ≤15.30MPa | ≤12.72MPa | ≤8.51MPa | 1500# | ≤25.54MPa | ≤21.23MPa | ≤14.20MPa | 2500# | ≤34.47MPa | ≤34.47MPa | ≤23.65MPa |
五、进口美标安全阀性能参数
型号 | 铸钢型
WCB | 304不锈钢型 | 316不锈钢型 | 316L不锈钢型 | 口径范围 | 1/2"～8" | 适用温度 | ≤427°C | 适用介质 | 水、蒸汽、油品 | 腐蚀性介质 | 腐蚀性介质 | 腐蚀性介质 | 材料 | 1、阀座 | 304SS | CF8 | CF8M | CF3M | 2、阀体 | WCB | CF8 | CF8M | CF3M | 3、调节圈 | 304SS | 304SS | 316SS | 316L | 4、反冲盘 | 304SS | 304SS | 316SS | 316L | 5、阀瓣 | 304SS | 304SS | 316SS | 316L | 6、导向套 | 304SS | 304SS | 316SS | 316L | 7、阀盖 | WCB | CF8 | CF8M | CF3M | 8、弹簧 | 50CrVa | 50CrVa包覆TEFLON | 50CrVa包覆TEFLON | 50CrVa包覆TEFLON | 9、阀杆 | 304SS | 2Cr13 | 316SS | 316L | 10、调整螺杆 | 2Cr13 | 2Cr13 | 2Cr13 | 2Cr13 | 11、保护罩 | ZG200 | ZG200 | ZG200 | ZG200 | 密封面材料 | 堆焊Co基硬质合金 | 堆焊Co基硬质合金 | 堆焊Co基硬质合金 | 堆焊Co基硬质合金 |

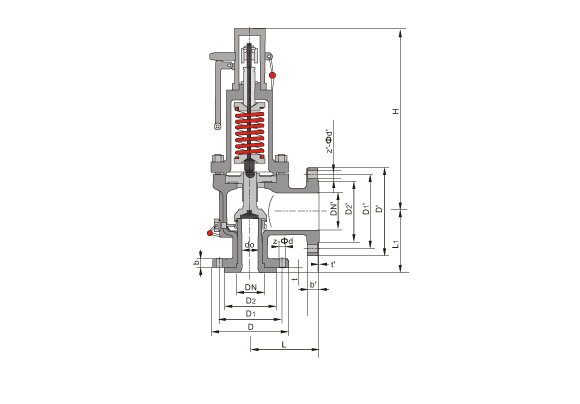

六、进口美标安全阀主要尺寸 Main Dimension
CLASS150LB | Nominal Diameter DN(in) | Dimension (mm) | do | D | D1 | D2 | b | t | Z- d | DN' | D' | D1' | D2' | b' | t' | Z- d' | L | L1 | H | 1/" 3/ "
2 4 | D | 89 | 60.5 | 35 | 12 | 5 | 4-15 | 20 | 98 | 70 | 43 | 14 | 1.6 | 4-15 | 90 | 90 | 290 | 3/ " 1"
4 | D | 98 | 70 | 43 | 14 | 5 | 4-15 | 25 | 108 | 79.5 | 51 | 15 | 1.6 | 4-15 | 96 | 92 | 310 | 1" 11/ "
2 | D | 108 | 79.5 | 51 | 15 | 5 | 4-15 | 40 | 127 | 98.5 | 73 | 18 | 1.6 | 4-15 | 115 | 105 | 320 | 1" 2" | D | 108 | 79.5 | 51 | 15 | 5 | 4-15 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 115 | 105 | 320 | 11/ " 2"
2 | G | 127 | 98.5 | 73 | 18 | 5 | 4-15 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 121 | 124 | 350 | 11/" 21/ "
2 2 | G | 127 | 98.5 | 73 | 18 | 5 | 4-15 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 121 | 124 | 360 | 11/ " 3"
2 | G | 127 | 98.5 | 73 | 18 | 5 | 4-15 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 124 | 130 | 360 | 2" 21/ "
2 | H | 152 | 120.5 | 92 | 18 | 5 | 4-19 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 124 | 130 | 380 | 2" 3" | J | 152 | 120.5 | 92 | 18 | 5 | 4-19 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 124 | 130 | 380 | 21/ " 4"
2 | J | 178 | 139.5 | 105 | 20 | 5 | 4-19 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 143 | 137 | 380 | 3" 4" | L | 190 | 152.5 | 127 | 22 | 5 | 4-19 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 162 | 156 | 480 | 4" 6" | N | 229 | 190.5 | 157 | 24 | 10 | 8-19 | 150 | 279 | 241.5 | 216 | 26 | 1.6 | 8-22 | 210 | 197 | 540 | 6" 8" | P | 279 | 241.5 | 216 | 26 | 10 | 8-22 | 200 | 343 | 298.5 | 270 | 29 | 1.6 | 8-22 | 241 | 240 | 760 | 8" 10" | R | 343 | 298.5 | 270 | 29 | 10 | 8-22 | 250 | 406 | 362 | 324 | 31 | 1.6 | 12-25 | 279 | 276 | 830 | 12" 14" | T | 483 | 432 | 381 | 32 | 10 | 12-25 | 350 | 533 | 476 | 413 | 35 | 1.6 | 12-29 | 370 | 360 | 890 | | | | | | | | | | | | | | | | | | | CLASS300LB | Nominal Diameter DN(in) | Dimension (mm) | do | D | D1 | D2 | b | t | Z- d | DN' | D' | D1' | D2' | b' | t' | Z- d' | L | L1 | H | 1 3
/2" /4" | D | 95 | 66.5 | 35 | 15 | 5 | 4-15 | 20 | 98 | 70 | 43 | 14 | 1.6 | 4-15 | 90 | 90 | 290 | 3/ " 1" | D | 117 | 82.5 | 43 | 16 | 5 | 4-19 | 25 | 108 | 79.5 | 51 | 15 | 1.6 | 4-15 | 96 | 92 | 310 | 1" 11/ " | D | 124 | 89 | 51 | 18 | 5 | 4-19 | 40 | 127 | 98.5 | 73 | 18 | 1.6 | 4-15 | 115 | 105 | 320 | 1" 2" | D | 124 | 89 | 51 | 18 | 5 | 4-19 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 115 | 105 | 320 | 11/ " 2" | F | 156 | 114.5 | 73 | 20 | 5 | 4-22 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 121 | 124 | 350 | 11/" 21/ "
2 2 | F | 156 | 114.5 | 73 | 20 | 5 | 4-22 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 121 | 124 | 360 | 11/ " 3" | F | 156 | 114.5 | 73 | 20 | 5 | 4-22 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 124 | 130 | 360 | 2" 21/ " | H | 165 | 127 | 92 | 22 | 5 | 8-19 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 124 | 130 | 380 | 2" 3" | H | 165 | 127 | 92 | 22 | 5 | 8-19 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 124 | 130 | 380 | 21/ " 4" | J | 190 | 149.5 | 105 | 24 | 5 | 8-22 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 143 | 137 | 380 | 3" 4" | L | 210 | 168 | 127 | 28 | 5 | 8-22 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 162 | 156 | 480 | 4" 6" | N | 254 | 200 | 157 | 32 | 10 | 8-22 | 150 | 279 | 241.5 | 216 | 26 | 1.6 | 8-22 | 210 | 197 | 540 | 6" 8" | P | 318 | 270 | 216 | 38 | 10 | 12-22 | 200 | 343 | 298.5 | 270 | 29 | 1.6 | 8-22 | 241 | 240 | 760 | 8" 10" | R | 381 | 330 | 270 | 42 | 10 | 12-25 | 250 | 406 | 362 | 324 | 31 | 1.6 | 12-25 | 279 | 276 | 830 | 注：出口法兰为150Lb。 Remark:150Lb for outlet flange. | | | | | | | | | | | | | | | | | | | CLASS600LB | Nominal Diameter DN(in) | Dimension (mm) | do | D | D1 | D2 | b | t | Z- d | DN' | D' | D1' | D2' | b' | t' | Z- d' | L | L1 | H | 3/ " 1"
4 | D | 117 | 82.5 | 43 | 16 | 7 | 4-19 | 25 | 108 | 79.5 | 51 | 15 | 1.6 | 4-15 | 96 | 92 | 2,310 | 1" 2" | D | 124 | 89 | 51 | 19 | 7 | 4-19 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 115 | 105 | 320 | 11/ " 2"
2 | F | 156 | 114.5 | 73 | 22 | 7 | 4-22 | 50 | 152 | 120.5 | 92 | 18 | 1.6 | 4-19 | 152 | 124 | 360 | 11/" 21/ "
2 2 | F | 156 | 114.5 | 73 | 22 | 7 | 4-22 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 152 | 124 | 380 | 11/ " 3"
2 | F | 156 | 114.5 | 73 | 22 | 7 | 4-22 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 152 | 124 | 380 | 2" 21/ "
2 | H | 165 | 127 | 92 | 26 | 7 | 8-19 | 65 | 178 | 139.5 | 105 | 20 | 1.6 | 4-19 | 162 | 154 | 410 | 2" 3" | H | 165 | 127 | 92 | 26 | 7 | 8-19 | 80 | 190 | 152.5 | 127 | 22 | 1.6 | 4-19 | 162 | 154 | 410 | 1
2 /2" 4" | K | 190 | 149 | 100 | 29 | 7 | 8-22 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 143 | 165 | 410 | 3" 4" | K | 210 | 168 | 127 | 32 | 10 | 8-22 | 100 | 229 | 190.5 | 157 | 24 | 1.6 | 8-19 | 162 | 155 | 480 | 4" 6" | N | 273 | 216 | 157 | 38 | 10 | 8-25 | 150 | 279 | 241.5 | 216 | 26 | 1.6 | 8-22 | 210 | 200 | 540 | 6" 8" | P | 292 | 292 | 216 | 46 | 10 | 12-29 | 200 | 343 | 298.5 | 270 | 29 | 1.6 | 8-22 | 241 | 240 | 760 | 注：出口法兰为150Lb。 Remark:150Lb for outlet flange. |
|
